Capacitor Discharge Accessories
Explore a comprehensive inventory supported by our expert stud welding team. We stand ready to support your stud welding endeavors. Reach out to us for tailored welding solutions, assistance with potential challenges, or to obtain a customized quote.
Category Files
| Capacitor Discharge Accessories | |||
|---|---|---|---|
| Tapered Base Chuck | |||
| Size | Part Number | Size | Part Number |
| 4-40 (12 SWG) | 4181101 | 3mm | 2181181 |
| 6-32 (10 SWG) | 4181351 | 4mm | 2181571 |
| 8-32 | 4181601 | 5mm | 2181971 |
| #10 | 4181871 | 6mm | 2182361 |
| 1/4 | 4182501 | 8mm | 2183121 |
| 5/16 | 4183121 | 10mm | 2183931 |
| 3/8 | 4183751 | Starter Kit (All Sizes) | TBSK001 |
| B-Collet | |||
| Size | Part Number | Size | Part Number |
| 4-40 (12 SWG) | 4181103 | 3mm | 2181183 |
| 6-32 (10 SWG) | 4181353 | 4mm | 2181573 |
| 8-32 | 4181603 | 5mm | 2181973 |
| #10 | 4181873 | 6mm | 2182363 |
| 1/4 | 4182503 | 8mm | 2183123 |
| 5/16 | 4183123 | 10mm | 2183933 |
| 3/8 | 4183753 | Starter Kit (All Sizes) | BCSK001 |

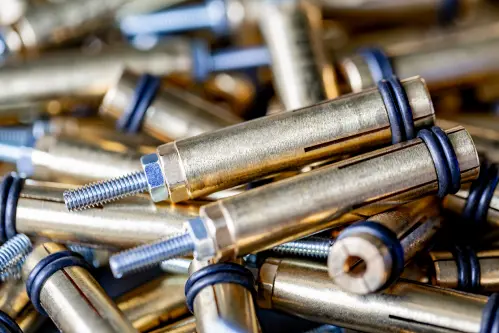

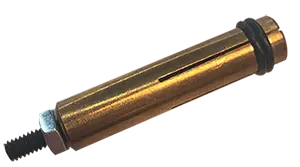

| Euro Style Chucks | |||
| Size | Part Number | Size | Part Number |
| 4-40 | 4181103EUR | 3mm | 2181183EUR |
| 6-32 | 4181353EUR | 4mm | 2181573EUR |
| 8-32 | 4181603EUR | 5mm | 2181973EUR |
| #10 | 4181873EUR | 6mm | 2182363EUR |
| 1/4 | 4182503EUR | 8mm | 2183123EUR |
| B-Collet Stop | |||
| Component | Part Number | ||
| Universal B-Stop | 418STOP | ||

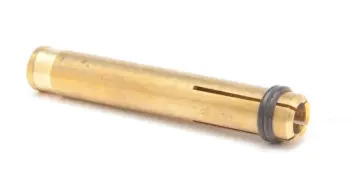

| B-Collet Long (Nelson) | |||
| Size | Part Number | Size | Part Number |
| 4-40 (12 SWG) | 4181104 | 3mm | 2181184 |
| 6-32 (10 SWG) | 4181354 | 4mm | 2181574 |
| 8-32 | 4181604 | 5mm | 2181974 |
| #10 | 4181874 | 6mm | 2182364 |
| 1/4 | 4182504 | 5/16 | 4183124 |
| 3/8 | 4183754 | ||
| Collet Insert | |||
| Size | Notes / Part Number | ||
| 6-32 (10 SWG) | Specify stud diameter and length | ||
| 8-32 | Specify stud diameter and length | ||
| #10 | Specify stud diameter and length | ||
| 1/4 | Specify stud diameter and length | ||
| 5/16 | Specify stud diameter and length | ||
| 3/8 | Specify stud diameter and length | ||
| B-Collet Protector | |||
| Size | Part Number | ||
| 10 GA. | 4180020 | ||
| Ground Spade Terminal Chuck | |||
| Component | Part Number | ||
| One Size | 4016718 | ||
| Spark Shield | |||
| Size | Part Number | ||
| 1.16" Dia. | 4170203 | ||
| Quick Clamps | |||
| Component | Part Number | ||
| Quick Clamps | 2023333 | ||
| Magnetic Cup Head Chuck | |||
| Component | Part Number | ||
| Complete Assembly | 4180019 | ||
| TSK 310 Template Adapter Footpiece | |||
| Component | Part Number | Component | Part Number |
| 30 mm Dia. | 4019792 | Faceplate | 4112156 |
| TSK 310 Tri-Pod Leg Footpiece | |||
| Component | Part Number | Component | Part Number |
| 30 mm Ring w/3-Legs | 4019938 | Single Leg Only | 4019946 |
| TSK 310 Twin Leg Footpiece | |||
| Component | Part Number | Component | Part Number |
| 5/16" × 7" Leg | 4170301 | Med. Footpiece | 4170001 |
| Adapters | |||
| Component | Part Number | Component | Part Number |
| Tapered Base Chuck Adapter (External) | 4170101 | B-Collet Adapter (Internal) | 4170103 |
| B-Collet Adapter (External) | 4170102 | ||
| Download full Capacitor Discharge Accessories Catalog (PDF) | |||
Innovative Manufacturing of Capacitor Discharge Equipment Accessories and Components
Delve into our selection of capacitor discharge equipment accessories and components, crafted through innovative manufacturing processes to optimize welding operations. Welding accessories provide unique gun welding solutions requiring minimal change-over time and a range of setups for welding operations. Accessories and parts for capacitor discharge welding include the following:- Tapered Base Chucks
- CD B-Collets
- CD B-Collets Long (Nelson)
- CD B-Collet Adapters
- CD B-Stop
- CD Collet Inserts
- Adjustable Legs / Footpieces
- CD Welder Accessories
- CD Euro Style
- CD Insulation Accesories
