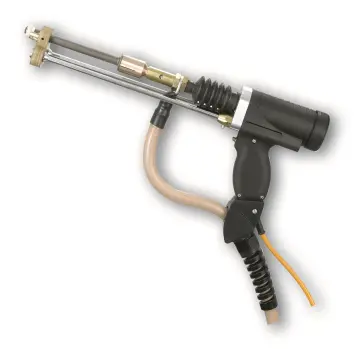

Drawn Arc Accessories
Backed by a diverse inventory, our team of stud welding specialists is committed to facilitating your stud welding projects. Connect with us to delve into specialized welding solutions, overcome potential challenges, or simply request a personalized quote.
| Drawn Arc Accessories | |||
|---|---|---|---|

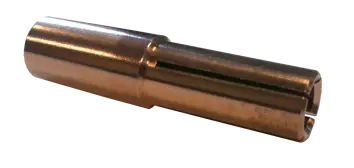

| Tapered Base Chuck | |||
| Size (Inch) | Part Number | Size (Metric / HCA) | Part Number |
| 1/4 | 4182501 | 5MM | 4181971 |
| 5/16 | 4183121 | 6MM | 4182361 |
| 3/8 | 4183751 | 8MM | 4183121 |
| 1/2 | 4185001 | 10MM | 4183931 |
| 5/8 | 4186251 | 1/4" HCA | |
| 3/4 | 4187501 | 3/8" HCA | |
| 7/16 | 4184381 | ||

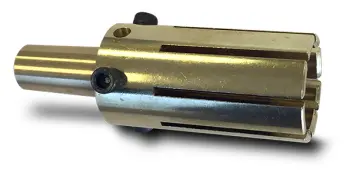

| Headed Concrete Anchor Chuck | |||
| Available with Tapered Base or 1/2 - 20 Thread. Tines & Bases also sold separately. | |||
| Size | Part Number | ||
| 1/4 | 4181/4HCA | ||
| 3/8 | 4183/8HCA | ||
| 1/2 | 4181/2HCA | ||
| 5/8 | 4185/8HCA | ||

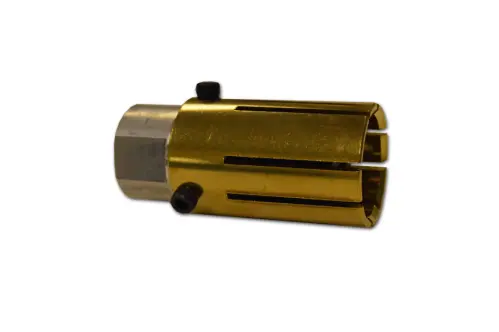

| Shear Connector Chuck | |||
| Available with 1/2 - 20 Thread. Tines & Bases also sold separately. | |||
| Size | Part Number | ||
| 3/4 | 4183/4SC | ||
| 7/8 | 4187/8SC | ||
| 1 | 41810SC | ||
| Ferrule Grip Closed | |||
| Size | Fits | Part Number | Grip Dia. |
| 1/4 | Fits Small | 4192501 | .380 |
| 5/16 | Fits Small | 4193121 | .445 |
| 3/8 | Fits Small | 4193751 | .505 |
| 7/16 | Fits Small | 4194371 | .585 |
| 1/2 | Fits Small | 4195001 | .650 |
| 5/8 | Fits Medium | 4196251 | .785 |
| 3/4 | Fits Medium | 4197501 | 1.030 |
| 7/8 | Fits Large | 4197510 | 1.203 |
| Ferrule Grip Split | |||
| Size | Fits | Part Number | Grip Dia. |
| 1/4 | Fits Small | 4192503 | .380 |
| 5/16 | Fits Small | 4193123 | .445 |
| 3/8 | Fits Small | 4193753 | .505 |
| 7/16 | Fits Small | 4194373 | .585 |
| 1/2 | Fits Small | 4195003 | .650 |
| 5/8 | Fits Medium | 4196253 | .785 |
| 3/4 | Fits Medium | 4197503 | 1.030 |
| 7/8 | Fits Large | 4198753 | 1.203 |
| 1 | Fits Large | 4191003 | 1.406 |
| Footpiece Closed – Universal | |||
| Size | Part Number | ||
| Small | 4170061 | Med. | 4170062 |
| Large | 4170063 | ||
| Footpiece Split – Universal | |||
| Size | Part Number | ||
| Small | 4170064 | Med. | 4170065 |
| Large | 4170066 | ||
| Footpiece Closed (Fits OBO HP312) | |||
| Size | Part Number | ||
| Small | 4170019 | Med. | 4170020 |
| Large | 4170063 | ||
| Footpiece Split (Fits OBO HP312) | |||
| Size | Part Number | ||
| Small | 4170011 | Med. | 4170012 |
| Large | 4170066 | ||
| Bi-Pod Footpiece | |||
| Fits OBO HP312 | 4170021 | Med. | 4170022 |
| Inert Gas Footpiece | |||
| Fits OBO HP312 – (gas fitting sold separately) | |||
| Size | Part Number | Size | Part Number |
| Med. | 4170013 | Med. | 4170067 |
| Legs | |||
| Size | Part Number | Size | Part Number |
| 5/16" × 7" | 4170301 | 5/16" × 9" | 4170302 |
| 5/16" × 14" | 4170303 | 5/16" × 24" | 4170305 |
| 5/16" × 36" | 4170306 | 3/8" × 14" | 4170307 |
| 3/8" × 24" | 4170308 | ||
| Gas Spark Shield | |||
| Size | Part Number | Size | Part Number |
| 1.16" Dia. | 4070104 | Universal 7/8" | 4170014 |
| Standard Spark Shield | |||
| Size | Part Number | ||
| 1.16" Dia. | 4170202 | ||
| Y Anchor Chuck | |||
| Size | Part Number | Size | Part Number |
| 1/4" | 418250Y | 3/16" | 418187Y |

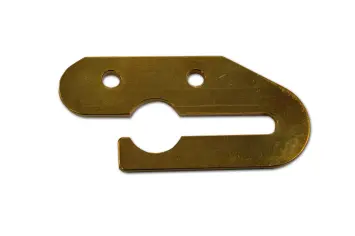

| Y Anchor Foot Plate | |||
| Size | Part Number | Size | Part Number |
| 1/4" | 4170026 | 3/16" | 4170027 |

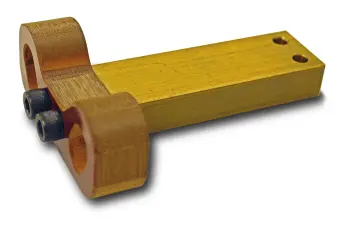

| Thru Deck Accessories | |||
| Description | Size | Part Number | |
| WTD Extension Assembly | 4170080 | ||
| Foot Only | 4170081 | ||
| Flat Grip | 3/4" (1.06 NECK) | 4197504 | |
| Flat Grip | 7/8" (1.29 NECK) | 4198750 | |
| Flat Grip | 5/8" | 4198755 | |
| Flat Grip | 1" (1.406 NECK) | 4198754 | |
| Heavy Duty Grip | 3/4" | 4197505 | |
| Heavy Duty Grip | 7/8" | 4198751 | |
| Insul-Twist Chuck | |||
| Size | Part Number | ||
| .125 × .250 | 4182507 | .125 × .750 | 4182510 |
| Ferrule Tubing & Ferrule Bushing | |||
| Stud Size | I.D | O.D | Tube Part Number / Bushing Part Number |
| #8 | .36 | .875 | 4182506 / 4182506 |
| #10 | .375 | .875 | 4192504 / 4192504 |
| 1/4" | .505 | .875 | 4193756 / 4192305 |
| 5/16" | .562 | .875 | 4193757 / 4193126 |
| 3/8" | .652 | .875 | 4193755 / 4193754 |
| 1/2" | .759 | 1.156 | 4196257 / 4195006 |
| 5/8" | .906 | 1.156 | 4196257 / 4196257 |

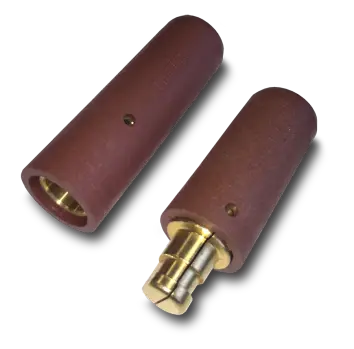

| Welder Connectors | |||
| Component | Part Number | Component | Part Number |
| Socket Camlock 4/0 Cable Mount (Female) | 3250250 | Plug Camlock 4/0 Cable Mount (Male) | 3250239 |
| Socket Camlock 4/0 Heavy Duty Cable Mount (Female) | 3250250HD | Plug Camlock 4/0 Heavy Duty Cable Mount (Male) | 3250239HD |
| Perpendicularity Bubble Levels | |||
| Component | Part Number | Component | Part Number |
| Cap Attachment | 4023335 | Leg Attachment | 4182510 |
| *Metric and Special Sizes Available | |||
| Download full Drawn Arc Accessories Catalog (PDF) | |||
