Stud Welding Process Comparison: Capacitor Discharge vs. Drawn Arc Stud Welding

The two primary stud welding processes are drawn arc (DA) and capacitor discharge (CD), each offering distinct benefits and capabilities to support various applications. Choosing the right stud welding process is essential to ensure optimal weld strength, prevent base material damage, reduce production costs, and achieve a finished aesthetic quality, while selecting the wrong method can cause burn-through, weak joints, and excessive distortion. We provide a quick overview of stud welding process comparisons to help you determine which method is best for your applications.

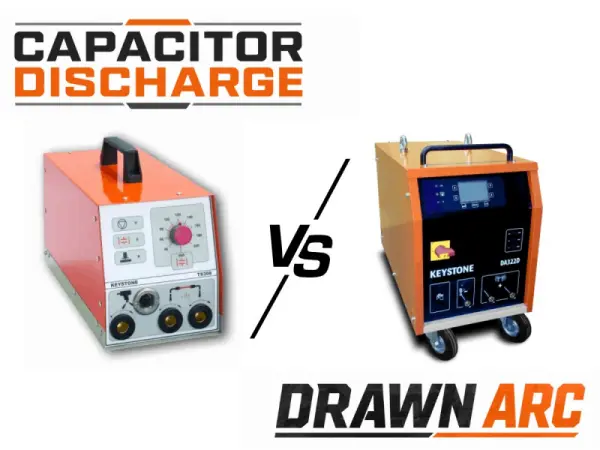

Process Overview: CD vs. Drawn Arc Stud Welding

Capacitor discharge stud welding processes use capacitors and electrical energy to join small-diameter weld studs to thin base materials (up to 1/4" thickness), producing a strong, reliable, clean fusion weld. Using an arc created by rapidly discharged energy stored in the weld gun, this process melts the entire diameter of the workpiece and part of the stud face before fusing and solidifying into a high-strength joint. This process can be used with dissimilar metals and one-sided projects while maintaining material integrity. Ideal where the lack of reverse side marking is a concern.

Alternatively, drawn arc stud welding processes create an electric arc from a DC power supply, using flux-loaded studs and ceramic ferrules to fuse large-diameter weld studs to thicker base materials. With the weld gun on the workpiece, the trigger draws an arc between the stud and the base material, which is then held together until the molten material solidifies, creating a joint stronger than the base material. While this process can also be used for one-sided projects, it is ideal for heavy-duty applications and for accommodating weld studs with a diameter up to 1-1/4” and material thicknesses above 0.040”.


Capacitor Discharge Step-By-Step	Drawn Arc Step-By-Step
The weld stud and gun are positioned against the workpiece.	The stud gun is placed over the base material with the spring partially compressed.
Stored energy is discharged through the special weld tip to melt the stud and workpiece.	When the trigger is fully pressed, the stud lifts from the base, drawing an arc that melts the ends of the weld stud and the base material.
The stud is plunged into the molten material.	The ferrule concentrates the heat and contains the molten metal within the desired weld zone.
Metals solidify and create a complete welded joint.	The stud is pushed into the molten material.
	The weld gun is removed when the joint is solidified, leaving the ferrule to be broken away and discarded.

Key Differences Between Drawn Arc and Capacitor Discharge Processes

Though both processes offer near-instantaneous, high-strength welding solutions, there are key differences between the processes that affect the applications for which they should be used, including:

• Compatible material thickness
• Base material used
• Weld strength requirements
• Cosmetic and finish quality
• Production volume and speed

When to Use Capacitor Discharge Stud Welding for Applications

Recommended for automotive interior parts, appliance enclosures, electronics enclosures, and light sheet metal fabrication, capacitor discharge stud welding processes should be employed when welding:

• Thin materials, including mild steel, aluminum, or brass
• Minimal backside marking is required
• Cosmetic or aesthetic-forward applications
• Welds should be small, clean, or nearly invisible
• Small-diameter studs are used
• Minimal heat input and low distortion purposes

When to Choose Drawn Arc Stud Welding for Applications

Drawn arc processes are best for heavy equipment, construction and agricultural machinery, and other heavy-duty assemblies, making it an ideal solution when welding for the following:

• Thicker materials, such as structural steel work
• Strong, high-penetration welds are required
• When welding large-diameter studs
• Joints that experience higher structural loads
• Light rust, scale, grease, or coatings are present
