SRM Drawn Arc Nut Welding System

Product Model: BMK-16i

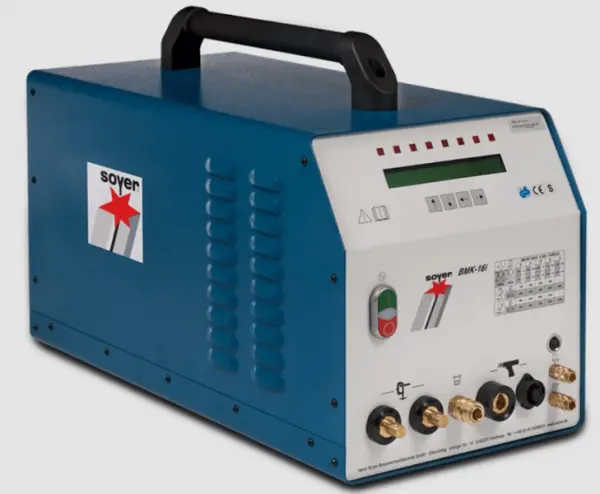

The Soyer BMK-16i inverter stud welding system from Southern Stud Weld Inc. is a multifunctional machine capable of stud welding, electrode welding, and GTAW. It has an inverter power supply design. The user can adjust welding parameters using the membrane keyboard and liquid crystal display. The stud welding system can make up to 5/8-in.-dia. stud welds with a reduced base. The system also includes automatic shielding gas control and can be interfaced with automatic welding heads, feeding systems, CNCs, and programmable logic controllers. It can be used to weld stainless steel, mild steel, aluminum, and brass.



0

Quantity:
Add to Quote

Special Features

  • Low connected load and low weight.
  • Extremely simple operator guide via sophisticated membrane keyboard with clear symbols for all necessary parameter inputs.
  • Welding current is variably adjustable.
  • Shielding gas pre-flow time is variably adjustable.
  • Welding time and pre-weld current time variable adjustable.
  • Integrated protective gas operating facilities
  • High welding current of 300 A for electrode welding and TIG welding.
  • Constant current controller (current fluctuation control).
  • Interface for signal interchange with external controls.
  • Self-protecting device in case of excess temperature or excessive welding sequence.
